Dahua 16 Channel XVR Machine 2MP
Original price was: 8,200.00৳ .8,000.00৳ Current price is: 8,000.00৳ .
📢 গুরুত্বপূর্ণ বিজ্ঞপ্তি
দয়া করে লক্ষ্য করুন:
এই পণ্য বিক্রি করা আমাদের মূল ব্যবসা নয়। তাই ওয়েবসাইটের মাধ্যমে সরাসরি অর্ডার গ্রহণ করা হয় না।
আপনি যদি এই পণ্যটি কিনতে চান অথবা বিস্তারিত জানতে চান, তাহলে নিচের নম্বরে সরাসরি কল করুন।
📞 কল করুন: +880 1557-737272
এই পণ্য বিক্রি করা আমাদের মূল ব্যবসা নয়। তাই ওয়েবসাইটের মাধ্যমে সরাসরি অর্ডার গ্রহণ করা হয় না।
আপনি যদি এই পণ্যটি কিনতে চান অথবা বিস্তারিত জানতে চান, তাহলে নিচের নম্বরে সরাসরি কল করুন।
Description

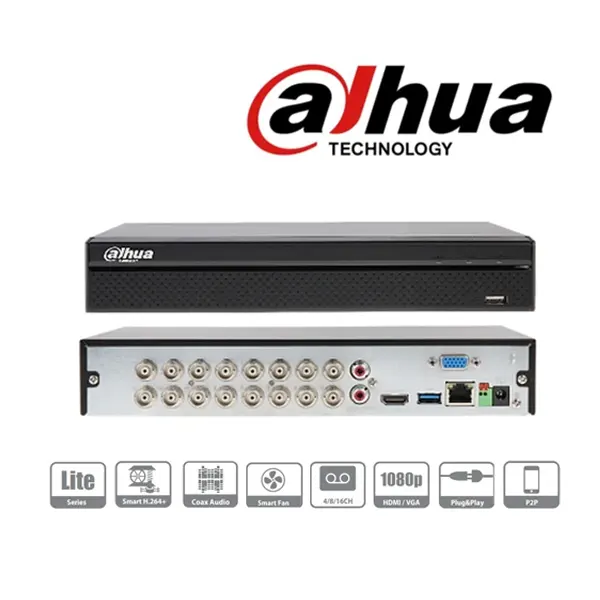

Model: Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder
Specification
| System | ||
| Main Processor | Embedded processor | |
| Operating System | Embedded linux | |
| Audio and Video | ||
| IP Camera Input | 16+2 channels, each channel up to 6MP | |
| Two-Way Talk | Reuse audio in/out, RCA | |
| Display | ||
| Interface | 1 HDMI; 1 VGA | |
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| Multi-Screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16 |
|
| OSD | Camera title; Time; Video loss; Camera lock; Motion detection; Recording | |
| Recording | ||
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 | |
| Resolution | 1080N; 720p; 960H; D1; HD1; BCIF; CIF; QCIF | |
| Record Rate | Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/HD1/BCIF/CIF/QCIF (1 fps–25/30 fps)Sub stream: CIF/QCIF (1 fps–7 fps) |
|
| Bit Rate | 32 kbps–4096 kbps per channel | |
| Record Mode | Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop | |
| Record Interval | 1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec | |
| Video Detection And Alarm | ||
| Trigger Event | Recording; PTZ; Tour; Video Push; Email; FTP; Snapshot; Buzzer and Screen Tips | |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis | |
| Alarm Input | N/A | |
| Relay Output | N/A | |
| Playback And Backup | ||
| Sync Playback | 1/4/9/16 | |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to second) | |
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom | |
| Backup Mode | USB Device/Network | |
| Third Party Support | ||
| Third Party Support | Dahua, Arecont Vision, AXIS; Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | |
| Network | ||
| Interface | 1 RJ-45 Port (100 MB) | |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) | |
| Maximum User Access | 128 users | |
| Smart Phone | iPhone; iPad; Android | |
| Interoperability | ONVIF 16.12, CGI Conformant | |
| Storage | ||
| Internal HDD | 1 SATA port, up to 6 TB capacity | |
| eSATA | N/A | |
| Auxiliary Interface | ||
| USB | 2 USB ports (USB 2.0) | |
| RS232 | N/A | |
| RS485 | N/A | |
| Power | ||
| Power Supply | DC 12V/2A | |
| Power Consumption | < 10W | |
| Component Environment | ||
| Operational Conditions | -10°C to +45°C (+14°F to +113°F), 10%–90% (RH) | |
| Storage Conditions | -20°C to +70°C (-4°F to +158°F), 0%–90% (RH) | |
| Construction | ||
| Dimensions | Compact 1U, 260.0 mm × 231.4 mm × 47.6 mm (10.24” × 9.11” × 1.87”) |
|
| Net Weight | 0.89 kg (1.96 lb) | |
| Gross Weight | 1.42 kg (3.13 lb) | |
